LK-D-SS-18-T Series Optical Mora Linea & Optical Simulator
- Bandwidth to 18GHz
- Princeps dynamic range
- Applicatio lata temperaturae
- Low amplitude response
- Customised time delays
depictio producti
Leveraging the cutting-edge technology of Microwave-Photonics, the LK-D-SS-18-T series optical delay line and optical simulator offer unparalleled performance in a spectrum of applications, including radar testing, signal processing, phased array antenna operations, antenna simulation, and phase noise analysis. This advanced system is designed to operate seamlessly across the entire S/C/X/Ku frequency bands, characterized by minimal insertion loss, an extensive dynamic range, robust electromagnetic isolation, and the capability to handle imperceptible triple transit signals.
Technical Specifications
Electrical / Optical Characteristics
| Parameter | Parameter Pretio | Unit | Attende | ||
| min | typical | Max | |||
| Range frequency | 2 | - | 18 | Pentium | |
| Planities Amplitudinis | - | ± 2 | ± 2.5 | dB | |
| Ne cuncteris Tempus | 0.01 | - | 150 | us | nativus |
| Accuratio Morae | -5‰ | - | +5‰ | - | |
| Damnum insertion | 0 | 20 | 30 | dB | nativus |
| initus VSWR | - | 1.8 | 2.2 | - | |
| VSWR output | - | 1.8 | 2.2 | - | |
| IMMINENTIA | - | 50 | - | Ω | |
| Compressio Input 1 dB | - | + 13 | + 17 | DBM | |
| Spurious Signal Rejection Ratio | 60 | - | - | dbc | |
| Figura strepitus | - | 50 | 60 | dB | 5us, 25℃ |
| Temperature agunt | -55 | - | + 85 | ℃ | See Ordering Information |
| Calor PRAECLUSIO | -55 | - | + 85 | ℃ | |
| Relative Delay vs. Temperature | - | - | 7 | ppm/ | |
| Insertion Loss vs. Temperature | - | 2 | 4 | % / ℃ | |
Connector Description & Power Supply
| Pin | III, DC | MMXX, IV, XI | III, DC | III, DC |
| intentione | NC | GND | + 12V | NC |
| Current Rating | - | - | 0.3 | - |
| Current max | 1 |

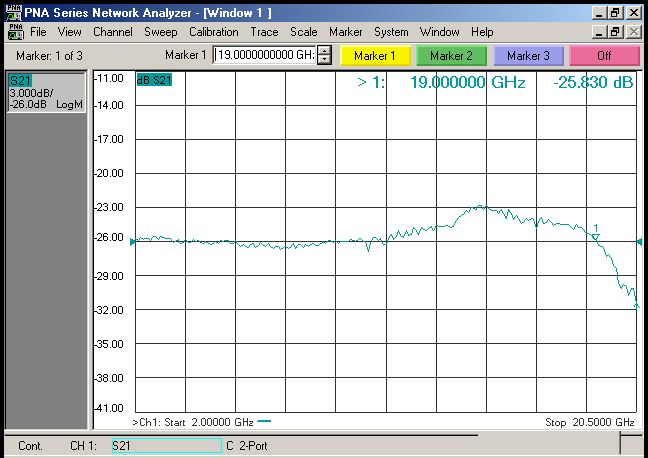

Typical Response Curves（ 25℃ ）
Dimension and Pins ( Unit: mm[inch])
Coniunctor RF: SMA-K (Adaptatus)
Conector DC: DE-9PS (Adaptatus)
| Product Type | LK-D-SS-18-T-G | Attende | |||||
| Time delay（us） | 8 | 20 | 35 | 50 | 60 | 80 | Latin |
| X（mm） | 37 | 50 | 65 | 80 | 90 | 110 | |
| Product Type | LK-D-SS-18-T-P | Attende | |||||
| Time Delay（us） | 8 | 35 | 60 | 80 | 110 | 150 | foedus |
| X（mm） | 20 | 45 | 55 | 65 | 78 | 95 | |
ordering Information
| Product Type | Packages | Quality Levels | Temperature agunt | Calor PRAECLUSIO |
| LK-D-SS-18-T-G-I | Latin | Industria-gradus | -20 ℃ ~ ℃ 70 | -40 ℃ ~ ℃ 80 |
| LK-D-SS-18-T-G-M | Medium-grade | -40 ℃ ~ ℃ 70 | -50 ℃ ~ ℃ 80 | |
| LK-D-SS-18-T-G-S | Special-grade | -55 ℃ ~ ℃ 85 | -55 ℃ ~ ℃ 85 | |
| LK-D-SS-18-T-P-I | foedus | Industria-gradus | -20 ℃ ~ ℃ 70 | -40 ℃ ~ ℃ 80 |
| LK-D-SS-18-T-P-M | Medium-grade | -40 ℃ ~ ℃ 70 | -50 ℃ ~ ℃ 80 | |
| LK-D-SS-18-T-P-S | Special-grade | -55 ℃ ~ ℃ 85 | -55 ℃ ~ ℃ 85 |
Applications
Probatio/calibratio radaris
signum processui
Bellum electronicum
Phased antenna array
Simulatio antennae
