LK-AMPD-D EXILIM Amplified Proin InGaAs Photodetector
- Alta Velocitas, Lata Latitudo Frequentiae
- Incorporata Bias-T
- O/E Hybrida Integrata
- Lucrum Magnum, Sonitus Humilis, Lata Fascia
- Hermetice Obsignatus, Connector SMA
- Humilis Currens Obscurus, alta proportio signi ad strepitum.
- Factor Formae Parvus.
depictio producti
LK-AMPD-D is a fusion of optical and electronic components, featuring a wide-spectrum InGaAs photodiode and a minimal-noise amplifier. The InGaAs PIN photodiode has a sensitivity range from 1000 to 1650nm. The low-noise amplifier boasts an RF gain of 30dB.
LK-AMPD-D is capable of delivering bandwidths of either 12GHz or 20GHz. This device functions with a +9V power supply. It is designed to work with the standard single-mode 9/125μm fiber as input. The RF output features an SMA-type connector that is impedance-matched to 50 ohms.
LK-AMPD-D is sealed in a way that prevents the ingress of moisture and other contaminants, and it has a weight of less than 23 grams. It is certified to meet the requirements of the Restriction of Hazardous Substances (RoHS) Directive 2.0.
Technical Specifications
| Aestimatio Maxima Typica et Absoluta | ||||
|---|---|---|---|---|
| Parameter | Sym. | genus | Rating | Unit |
| Repono temperatus range | TSTG | -45 +85 | -55 +100 | ℃ |
| Temperaturae spatium operationis in capsa | TC | 25 | -40 +85 | ℃ |
| prospectumque Bias intentione | VR | +9 | +9 ～ +12 | V |
| Potentia Ingressa Optica | Pin | 0 | + 10 | DBM |
| Potentia Optica Exhausta | PB | - | + 13 | DBM |
| Temperatura plumbi ad soldandum | Tp | 280（10s） | 330（10s） | ℃ |
| Proprietates electricae/opticae (T)C = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| Parameter | sunt derisoribus iudicia | test Description | Parameter Pretio | Unit | ||
| necem dolor | λ | - | 1000 ~ 1650 | nm | ||
| Frequentiae Ambitus | - | - | X-Band | Ku-Band | - | |
| Latitudo Frequentiae Parvae Signalis | f-3dB | TC = 22 ± 3℃ | 0.8 ~ 12 | 2 ～ 20 | Pentium | |
| Responsivity | Re | VR =+9V, Pin = 10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Planities Amplitudinis | A | TC =-45～+85°C | ≤ ± 2 | dB | ||
| Saturatio Potentiae Opticae | Ps | VR = +9 V, λ = 1550 nm AC Modulated | + 10 | DBM | ||
| Lucrum Signi RF | G | - | 30 ± 1 | dB | ||
| Saturatio Potentiae Egressae RF | Pde | - | + 10 | DBM | ||
| VSWR output | VSWR | - | ≤ 2 | - | ||
| IMMINENTIA output | RL | - | 50 | Ω | ||
●Typical Response Curves
（ Fig . 1 X- Band Photodetector Frequency Response）
(Fig. 2 Responsio Frequentiae Photodetectoris Ku-Band)

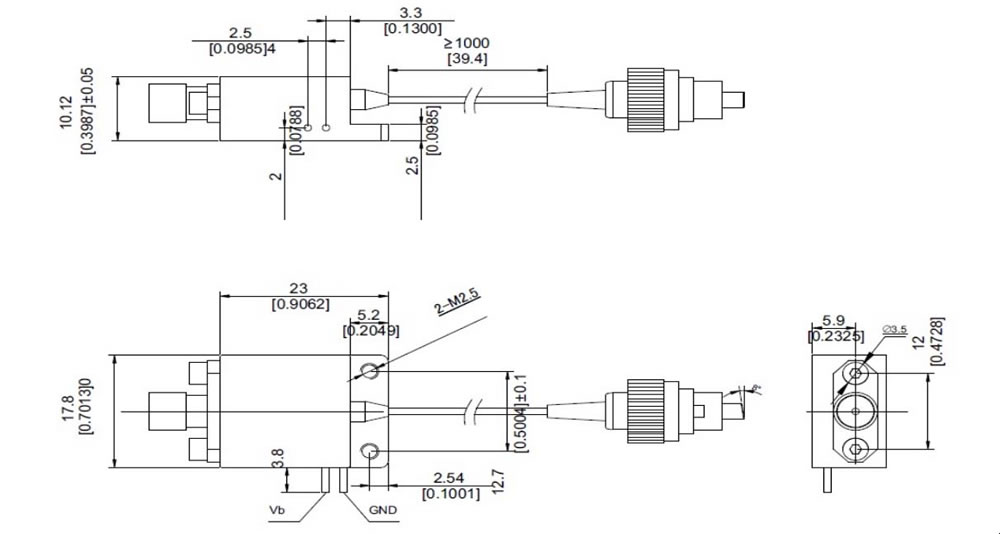

●Dimension and Pins ( Unit: mm[inch] )
Coniunctor RF: SMA
●ordering Information
Scheda 1:
| Codex | Lucrum Signi RF | Attende |
| D | CXX dB | Frequentia Typica et Media |
Scheda 2:
| Codex | Latitudo Bandae Analogicae |
| X | 0.3 ~ 12 GHz |
| Ku | 2 ~ 20 GHz |
Scheda 3:
| Codex | Type connector | Attende |
| N | Nullus Coniunctor | Fibra porriformis unimodalis 9 / 125 μm |
| A | FC / APC | |
| P | FC / PC |
●cautiones
Radius curvaturae fibrae non minor quam 20 mm ad fibrae laedendum vitandum.
Fac ut facies copulationis fibrae munda sit antequam eam cum optocircuito coniungas.
Idonea praesidium ESD in repositione, transportatione et usu requiritur.
Omnes nostri photodetectores ordinarii in modulos aptari possunt!
Applications
Processus Informationis Radaricae
Prosopographia Militiarum Equestrium Quae electronic
Mensura Antennae
Communicationes Fibrae Opticae
Securitate et custodia circumdant
