LK-D-SS-12-T Series Optical Mora Linea & Optical Simulator
- Latitudo frequentiae ad 12GHz
- Princeps dynamic range
- Applicatio lata temperaturae
- Responsio amplitudinis humilis
- Morae temporis ad arbitrium accommodatae
depictio producti
Relying on microwave photonics technology, the LK-D-SS-12-T series of optical delay lines and optical simulators provide excellent performance and are widely used in radar testing, signal processing, phased array antennas, antenna simulation and phase noise testing. The devices are able to operate efficiently across the entire L/S/C/X frequency band with low insertion loss, high dynamic range, strong electromagnetic isolation, and the ability to handle unmeasurable triple transmission signals. These features make it ideal for high-precision optical and microwave signal processing.
Technical Specifications
Proprietates electricae/opticae
| Parameter | Parameter Pretio | Unit | Attende | ||
| min | typical | Max | |||
| Range frequency | 1 | - | 12 | Pentium | |
| Planities Amplitudinis | - | ± 2 | ± 2.5 | dB | |
| Ne cuncteris Tempus | 0.01 | - | 150 | us | nativus |
| Accuratio Morae | -5‰ | - | +5‰ | - | |
| Damnum insertion | 0 | 20 | 30 | dB | nativus |
| initus VSWR | - | 1.8 | 2 | - | |
| VSWR output | - | 1.8 | 2 | - | |
| IMMINENTIA | - | 50 | - | Ω | |
| Compressio Input 1 dB | - | + 13 | + 17 | DBM | |
| Ratio Rejectionis Signorum Spuriorum | 60 | - | - | dbc | |
| vox figura | - | 45 | 55 | dB | 5us, 25℃ |
| Temperature agunt | -55 | - | + 85 | ℃ | Vide Informationem Ordinationis |
| Calor PRAECLUSIO | -55 | - | + 85 | ℃ | |
| Mora Relativa contra Temperaturam | - | - | 7 | ppm/ | |
| Iactura Insertionis contra Temperaturam | - | 2 | 4 | % / ℃ | |
Descriptio Connectoris et Fons Potestatis
| Pin | III, DC | MMXX, IV, XI | III, DC | III, DC |
| intentione | NC | GND | + 12V | NC |
| Current Rating | - | - | 0.3 | - |
| Current max | 1 |

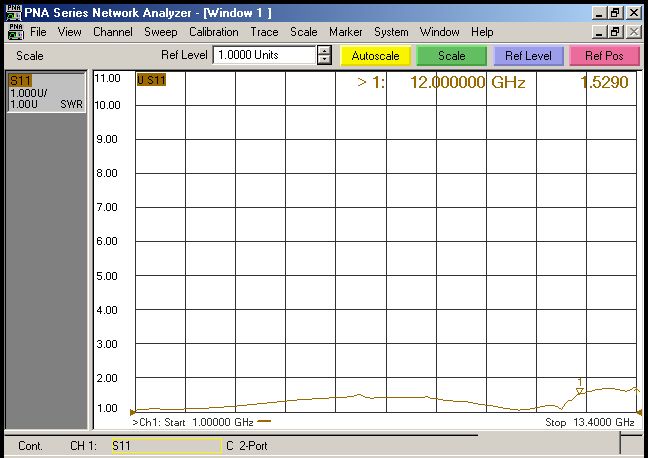

Curvae Responsionis Typicae (25℃)
Dimensiones et Clavi (Unitas: mm [pollices])
Coniunctor RF: SMA-K (Adaptatus)
Conector DC: DE-9PS (Adaptatus)
| Product Type | LK-D-SS-12-TG | Attende | |||||
| Mora temporis (nobis) | 8 | 20 | 35 | 50 | 60 | 80 | Latin |
| X（mm） | 37 | 50 | 65 | 80 | 90 | 110 | |
| Product Type | LK-D-SS-12-TP | Attende | |||||
| Mora Temporis (nobis) | 8 | 35 | 60 | 80 | 110 | 150 | foedus |
| X（mm） | 20 | 45 | 55 | 65 | 78 | 95 | |
ordering Information
| Product Type | Packages | Gradus Qualitatis | Temperature agunt | Calor PRAECLUSIO |
| LK-D-SS-12-TGI | Latin | Industria-gradus | -20 ℃ ~ ℃ 70 | -40 ℃ ~ ℃ 80 |
| LK-D-SS-12-TGM | Medii gradus | -40 ℃ ~ ℃ 70 | -50 ℃ ~ ℃ 80 | |
| LK-D-SS-12-TGS | Gradus specialis | -55 ℃ ~ ℃ 85 | -55 ℃ ~ ℃ 85 | |
| LK-D-SS-12-TPI | foedus | Industria-gradus | -20 ℃ ~ ℃ 70 | -40 ℃ ~ ℃ 80 |
| LK-D-SS-12-TPM | Medii gradus | -40 ℃ ~ ℃ 70 | -50 ℃ ~ ℃ 80 | |
| LK-D-SS-12-TPS | Gradus specialis | -55 ℃ ~ ℃ 85 | -55 ℃ ~ ℃ 85 |
Attende：1. T is the maximum of delay line which unit is microsecond(us).
Applications
Probatio/calibratio radaris
signum processui
Bellum electronicum
Series antennarum phasatarum
Simulatio antennae
