LK-HPPD-Ku High Power InGaAs Libratum Photodetector

  • lata Bandwidth
  • Incorporated Bias-T
  • DC Copulatus
  • Hermetically Sealed, SMA Connector
  • Low Dark Current，high signal-to-noise ratio.
  • Small Form Factor.
QUAESITUM

+ 86 29 88244373

depictio producti

The High-Speed Balanced Photodetector (HPPD-Ku) is a precision optoelectronic device tailored for digital and analog applications. This module integrates an InGaAs PIN photodiode with a spectral response range from 1250 to 1650 nanometers, inclusive of the necessary matching electronics to ensure signal integrity and performance.

LK-HPPD-Ku is capable of delivering a bandwidth of 18 gigahertz, making it suitable for high-speed data transmission applications. It operates on a +5-volt power supply, aligning with standard power requirements for stability and efficiency。 The module is compatible with standard single-mode 9/125-micrometer optical fibers, ensuring seamless integration with existing fiber infrastructure. The Radio Frequency (RF) output port is equipped with an SMA-compatible connector, which is impedance-matched to 50 ohms, facilitating optimal signal transfer and minimizing signal loss.

Technical Specifications
Typical & Absolute Maximum Rating
Parameter Sym. genus Rating Unit
Repono temperatus range TSTG -45 +85 -55 +100 ℃
Operating case temperature range TC 25 -40 +85 ℃
prospectumque Bias intentione VR +5 +5 ～ +9 V
Optical Input Power Pin + 10 + 17 DBM
Burn-out Optical Power PB - + 20 DBM
Lead soldering temperature Tp 280（10s） 330（10s） ℃
Electrical / Optical Characteristics ( TC = 22 ± 3 ℃ )
Parameter sunt derisoribus iudicia test Description Parameter Pretio Unit
necem dolor λ - 1000 ～ 1650 nm
Frequency Range - - Ku - Band -
Small Signal Bandwidth f-3dB TC = 22 ± 3℃ 0.8 ～ 18 Pentium
Responsivity Re VR : Pin = 1mW λ = 1310 nm ≥ 0.85 A / W
λ = 1550 nm ≥ 0.8
Amplitude Flatness A TC =-45～+85 ℃ ≤ ± 1.5 dB
Saturation Optical Power Ps VR , λ = 1550 nm
AC Modulated		 + 17 DBM
Current tenebris Id VR ≤ 10 nA
Saturation RF Output Power Pde - -10 DBM
IMMINENTIA output RL - 50 Ω

● Typical Response Curves

(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)

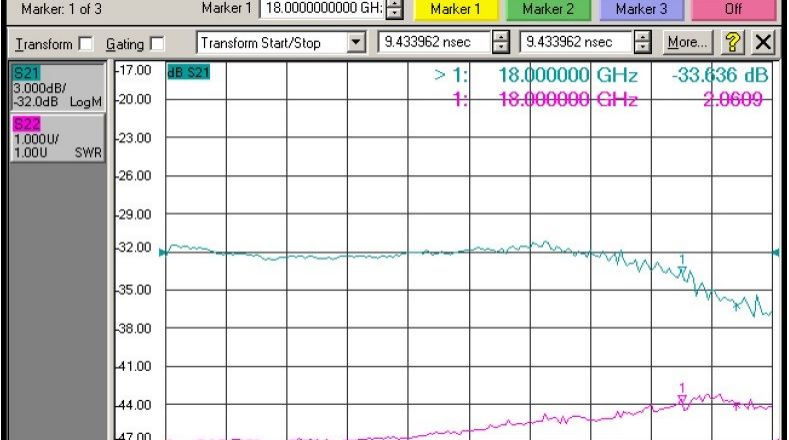

（ Ku - Band Photodetector Frequency Response）

● Dimension and Pins ( Unit: mm[inch] )

●ordering Information

Scheda 1:

Codex Latitudo Bandae Analogicae
KU 0.8 ～ 18GHz

Scheda 2:

Codex Type connector Attende
N Nullus Coniunctor Single-mode 9 / 125 μm fiber pigtail
A FC / APC
P FC / PC

● Cautiones

  • Radius curvaturae fibrae non minor quam 20 mm ad fibrae laedendum vitandum.

  • Fac ut facies copulationis fibrae munda sit antequam eam cum optocircuito coniungas.

  • Idonea praesidium ESD in repositione, transportatione et usu requiritur.

All of our standard photodetectors can be customized into modules！

Applications

  • Optical-fiber Communication

  • Radar Information Processing

  • Prosopographia Militiarum Equestrium Quae electronic

  • High-speed Signal Test and Measurement
