LK-FCPD InGaAs Photodetector
- lata Bandwidth
- Incorporata Bias-T
- O/E Hybrida Integrata
- Low Noise, Broadband
- SMA Connector
- Humilis Currens Obscurus, alta proportio signi ad strepitum.
- Factor Formae Parvus.
depictio producti
The Fiber-Coupled Photodetector (FCPD) is an advanced optoelectronic hybrid system, incorporating a broadband Indium Gallium Arsenide (InGaAs) photodiode. The InGaAs PIN photodiode is designed to respond to wavelengths ranging from 1000 to 1650 nanometers. LK-FCPD is capable of providing bandwidths of 1 gigahertz, 2.5 gigahertz, and offers customizable solutions with a maximum bandwidth capability of 8 gigahertz. The device is powered by a +5-volt supply voltage and is equipped with a standard FC (face-contacted) fiber-optic connector for optical input. The Radio Frequency (RF) output is facilitated through an SMA-compatible connector, which is impedance-matched to 50 ohms.
LK-FCPD is lightweight, less than 15 grams, which is advantageous for applications requiring minimal mass. The device is compliant with the Restriction of Hazardous Substances (RoHS) Directive 2.0, ensuring that it meets stringent environmental and safety regulations.
Technical Specifications
| Aestimatio Maxima Typica et Absoluta | ||||
|---|---|---|---|---|
| Parameter | Sym. | genus | Rating | Unit |
| Repono temperatus range | TSTG | -45 +85 | -55 +100 | ℃ |
| Temperaturae spatium operationis in capsa | TC | 25 | -40 +70 | ℃ |
| prospectumque Bias intentione | VR | +5 | +4.75 ～ +5.25 | V |
| Potentia Ingressa Optica | Pin | 0 | +5 | DBM |
| Potentia Optica Exhausta | PB | - | + 13 | DBM |
| Temperatura plumbi ad soldandum | Tp | 280（10s） | 330（10s） | ℃ |
| Proprietates electricae/opticae (T)C = 22 ± 3 ℃) | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | sunt derisoribus iudicia | test Description | Parameter Pretio | Unit | |||
| necem dolor | λ | - | 1000 ~ 1650 | nm | |||
| Frequentiae Ambitus | - | - | L. I. | S Band | CM | - | |
| Latitudo Frequentiae Parvae Signalis | f-3dB | TC = 22 ± 3℃ | 0.03 ~ 1 | 0.03 ~ 2.5 | 0.1 ~ 8 | Pentium | |
| Responsivity | Re | VR =+5V, Pin = 1mW | λ = 1310 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | A / W |
| λ = 1550 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | ||||
| Planities Amplitudinis | A | TC =-40～+70°C | ≤ ± 1.5 | ≤ ±2 | dB | ||
| VSWR output | VSWR | - | ≤ 2 | ≤ 2.2 | - | ||
| Saturatio Potentiae Opticae | Ps | VR = +5 V, λ = 1550 nm AC Modulata |
+5 | DBM | |||
| Saturatio Potentiae Egressae RF | Pde | - | -10 | DBM | |||
| Current tenebris | ID | - | ≤10 | nA | |||
| IMMINENTIA output | RL | - | 50 | Ω | |||
● Curvae Responsionis Typicae
Fig . 1 L- Band FCPD InGaAs Photodetector Frequency Response

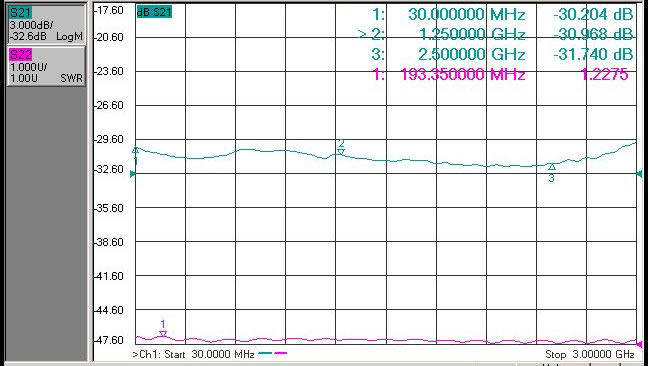

Fig . 2 S- Band FCPD InGaAs Photodetector Frequency Response
Fig . 3 C- Band FCPD InGaAs Photodetector Frequency Response
●Dimensiones et Clavi (Unitas: mm [pollices])
Coniunctor Opticus: Coniunctor fibrae opticae FC (facie contactus)
Coniunctor RF: SMA
●ordering Information
Scheda 1:
| Codex | Latitudo Bandae Analogicae |
| L | 0.03 ~ 1 GHz |
| S | 0.03 ~ 2.5 GHz |
| CM | Adaptatio (≦ 8GHz) |
● Cautiones
Fac ut facies copulationis fibrae munda sit antequam eam cum optocircuito coniungas.
Interfacies RF et interfacies optica operculo pulveris tegendae sunt cum non in usu sunt.
The suitable ESD protection is required in storage, transportation
Omnes nostri photodetectores ordinarii in modulos aptari possunt!
Applications
Processus Informationis Radaricae
Prosopographia Militiarum Equestrium Quae electronic
Mensura Antennae
Communicationes Fibrae Opticae
Securitate et custodia circumdant
