LK-HSPD EXILIM InGaAs Photodetector
- Wide Bandwidth，High Speed
- Incorporata Bias-T
- DC Copulatus
- Hermetice Obsignatus, Connector SMA
- Humilis Currens Obscurus, alta proportio signi ad strepitum.
- Factor Formae Parvus.
depictio producti
LK-HSPD high-speed detection module is engineered to cater to both digital and analog uses. This module is equipped with an InGaAs PIN photodiode that has a response wavelength ranging from 1250 to 1650 nm, along with the essential matching electronics.
LK-HSPD is capable of delivering bandwidths of 8 GHz, 12 GHz, 18 GHz, 22 GHz, and 30 GHz. The operation of the module is based on a power supply of either +3.3V or +5V, depending on the specific model. It is designed to work with a standard single-mode fiber of 9/125μm. The RF output features an SMA-compatible connector or a 2.92 mm connector, both with a 50 ohm impedance match.
LK-HSPD is hermetically sealed to safeguard against environmental factors, thereby enhancing its durability and reliability. It boasts a lightweight design, with a mass of less than 15 grams, which is ideal for applications where weight is a critical factor. The module is certified in accordance with the Restriction of Hazardous Substances (RoHS) Directive 2.0, confirming its compliance with stringent environmental and safety regulations.
Technical Specifications
| Aestimatio Maxima Typica et Absoluta | ||||
|---|---|---|---|---|
| Parameter | Sym. | genus | Rating | Unit |
| Repono temperatus range | TSTG | -45 +85 | -55 +100 | ℃ |
| Temperaturae spatium operationis in capsa | TC | 25 | -40 ～ +85 | ℃ |
| prospectumque Bias intentione | VR | 3.3 or 5 | 2.8 ~ 5.25 | V |
| Potentia Ingressa Optica | Pin | +3 | + 10 | DBM |
| Potentia Optica Exhausta | PB | - | + 13 | DBM |
| Temperatura plumbi ad soldandum | Tp | 280（10s） | 330（10s） | ℃ |
| Electrical / Optical Characteristics ( TC = 22 ± 3 ℃ ) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Parameter | sunt derisoribus iudicia | test Description | Parameter Pretio | Unit | ||||||
| necem dolor | λ | - | 1000 ~ 1650 | nm | ||||||
| Frequentiae Ambitus | - | - | C-Band | X-Band | Xu-I. | Ku+-Band | K+-Band | PLUS | - | |
| Latitudo Frequentiae Parvae Signalis | f-3dB | TC= 22 ± 3℃ | 0.1 ~ 8 | 0.3 ~ 12 | 0.8 ~ 18 | 2 ~ 22 | 2 ~ 30 | 0.3 ~ 18 | Pentium | |
| Responsivity | Re | VR : Pin= 1mW | λ = 1310nm | ≥ 0.85 | ≥ 0.85 | ≥ 0.8 | ≥ 0.75 | ≥ 0.75 | ≥ 0.75 | A / W |
| λ = 1550nm | ≥ 0.95 | ≥ 0.95 | ≥ 0.75 | ≥ 0.70 | ≥ 0.65 | ≥ 0.70 | ||||
| Planities Amplitudinis | A | TC =-40～+85°C | ≤ ± 1.5 | ≤ ± 1.5 | ≤ ±1.5 | ≤ ± 2 | ≤ ± 2 | ≤ ± 1.5 | dB | |
| VSWR output | VSWR | - | ≤ 2 | ≤ 2 | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 | - | |
| prospectumque Bias intentione | VR | - | + 3.3 | + 3.3 | + 3.3 | + 3.3 | +5 | +5 | V | |
| RF Connector | - | - | SMA | SMA | SMA | 2.92mm | 2.92mm | SMA | - | |
| Saturatio Potentiae Opticae | Ps | VR , λ = 1550nm AC Modulata |
+7 | +7 | +7 | +7 | +7 | + 10 | DBM | |
| Current tenebris | Id | VR | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | nA | |
| Saturatio Potentiae Egressae RF | Excidunt | - | -10 | DBM | ||||||
| IMMINENTIA output | RL | - | 50 | Ω | ||||||
● Curvae Responsionis Typicae
(VR , λ=1550nm , TC =25 ºC ,Pin=0dBm)

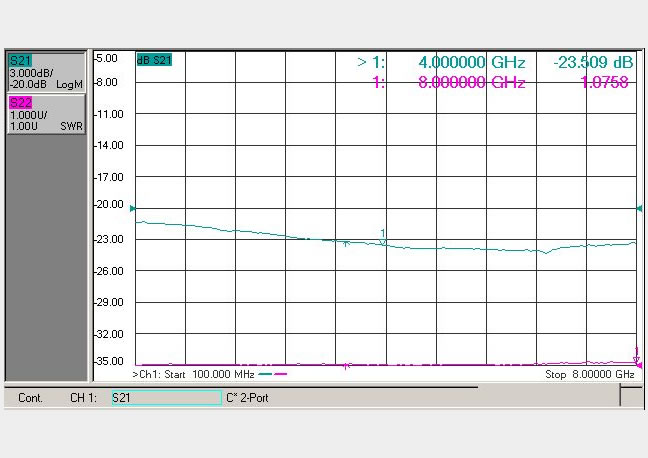

(Fig.1 C-Band Photodetector Frequency Response)

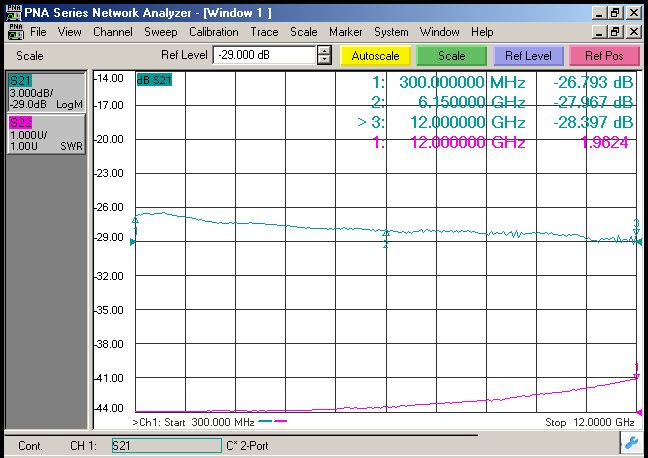

(Fig.2 X-Band Photodetector Frequency Response)

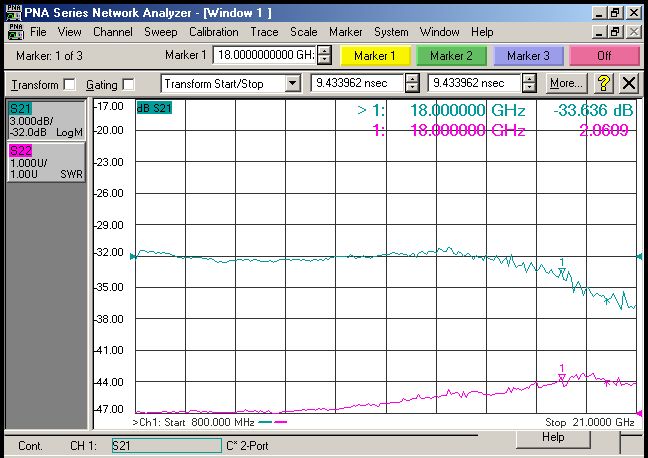

(Fig.3 Ku-Band Photodetector Frequency Response)

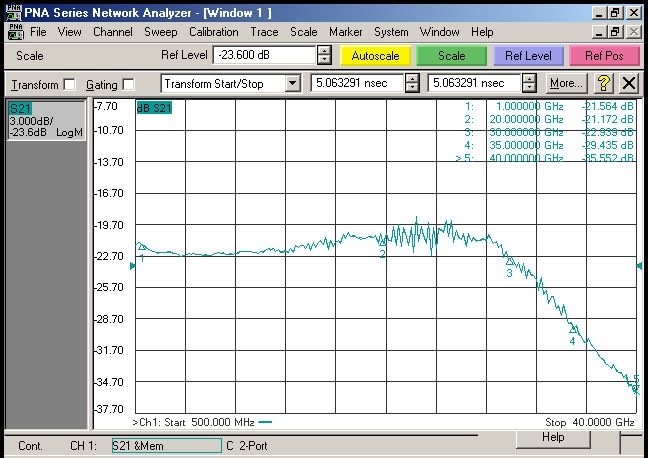

(Fig.4 K+ -Band Photodetector Frequency Response)
● Dimension and Pins (Unit:mm[ inch])
RF Connector： SMA or 2.92mm
● Informationes Ordinationis
Scheda 1:
| Codex | Latitudo Bandae Analogicae |
| C | 0.1 ~ 8GHz |
| X | 0.3 ~ 12 GHz |
| Ku | 0.8 ~ 18 GHz |
| Ku+ | 2 ~ 22 GHz |
| K+ | 2 ~ 30 GHz |
| Plus | 0.3 ~ 18 GHz |
Scheda 2:
| Codex | Type connector | Attende |
| N | Nullus Coniunctor | Single-mode 9/125 μm fiber pigtail |
| A | FC / APC | |
| P | FC/PC |
● Cautiones
The fiber bending radius no less than 20mm for avoiding fiber damaged .
Fac ut facies copulationis fibrae munda sit antequam eam cum optocircuito coniungas.
Idonea praesidium ESD in repositione, transportatione et usu requiritur.
Omnes nostri photodetectores ordinarii in modulos aptari possunt!
Applications
Communicatio Fibrae Opticae
Processus Informationis Radaricae
Prosopographia Militiarum Equestrium Quae electronic
Examen et Mensura Signorum Celerium
Securitate et custodia circumdant
